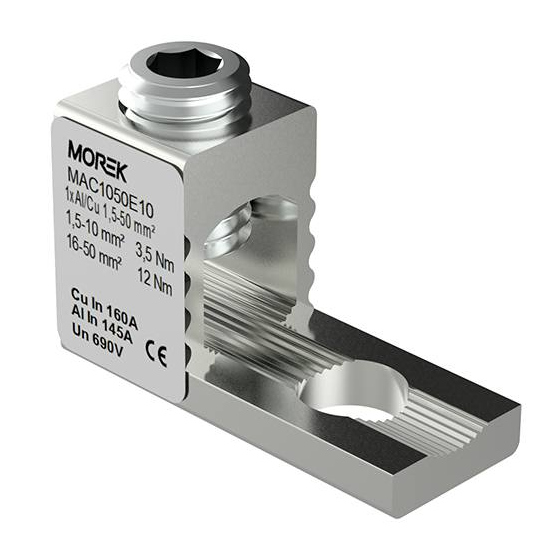

MAC1050E10 OT50 Bekötő kengyel 1,5-50mm2
Készlet:
9 db
2 480 Ft
Bekötő kengyel, 1xAl/Cu 1,5-50 mm2
| SKU | MAC1050E10 |
|---|---|
| EAN | 4744397014832 |
| Color | Natural |
| Wire material | Al/Cu |
| Cross-section min. (mm²) | 1,5 |
| Cross-section max. (mm²) | 50 |
| Input wire min. (mm²) | 1,5 |
| Input wire max. (mm²) | 50 |
| Number of connections | 1 |
| Nominal current (A) | 160 (Cu) / 145 (Al) |
| Nominal voltage (V) | 690 |
| Service temperature (°C) | 80 |
| Material | Tin-plated aluminium |
| Mounting method | Screw M8 |
| Item width (mm) | 14 |
| Item length (mm) | 35 |
| Item height (mm) | 21,5 |
| Item weight (g) | 10 |
| Hole diameter (mm) | 8,5 |
| Screw | Hex 5 |
| Tightening torque (Nm) | 3,5 Nm (1,5 - 10 mm²) 12 Nm (16 - 50 mm²) |
| IP rating | IP00 |
| Certification | EN 61238-1:2003 |
| CN8 code | 85369001 |
