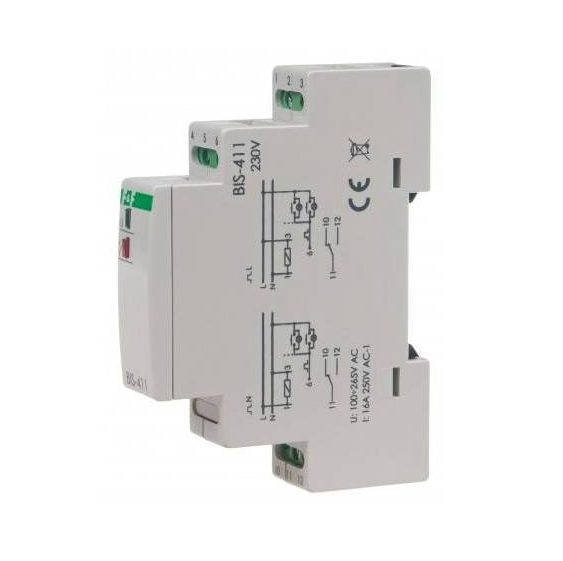

F&F impulzus relé BIS-411 100-265VAC 1 váltó érintkező
Készlet:
6 db
7 190 Ft
Impulzusrelé bistabil moduláris 16A 1NO/NC 165-265VAC 0,1-0,2sec
| Power supply voltage | 165÷265 V AC |
| Local control | YES |
| Maximum AC-1 load current | 16 A |
| The executive element | relay |
| Contact configuration | 1 × NO/NC |
| Separation of the contact | YES |
| Resistance to shock currents | NO |
| Number of channels | 1 |
| functionality | ON/OFF |
| Delay of operation | 0,1 ÷ 0,2 s |
| Control pulse current | less than 5 mA |
| Cooperation with illuminated buttons | YES |
| Status memory after power failure | NO |
| Activate on time | NO |
| Dedicated central control inputs | NO |
| Radio control | NO |
| Terminal | pluggable terminal blocks 2,5 mm² |
| Tightening torque | 0,4 Nm |
| Power consumption | 0,7 W |
| Working temperature | -25 ÷ 50 °C |
| Dimensions | 1 module (18 mm) |
| Assembly | on rail 35 mm |
| Ingress Protection Marking | IP20 |
